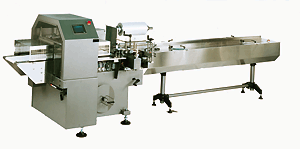

Clamco 1700 Series
The low-cost, high-speed shrink wrap alternative!
Clamco's patented shrink film wrapping 1700 System features a rotary hot knife side seal attachment,
production speeds up to 80 packages per minute, a maximum seal width of 17 inches,
easy touch screen operation and much more. Combined with our rugged 860 Heat Shrink Tunnel,
this systems gives you high speeds at less cost.
Standard Features:
Patented shrink film wrapping machine
Patented rotary hot knife side seal machine
PLC controls
Touch screen operator interface for all machine controls
Variable speed infeed systems
Variable speed, Venturi vacuum belt
Variable speed cast steel seal knife seals most polyolefin and PVC films
Pin perforator system
Obstruction detectors on end seal system
Fully closed end seal system with E-stop
Quickly adjustable seal centering system
One year limited warranty
Standard Controls on Touch Screen:
All product set-up features (i.e. - product length, speed, etc.)
Fault troubleshooting ability
Hot knife temperature set point and independent feedback
Infeed, vacuum belt, and end seal motor speeds, counter
Standard Features on Model 17-80S Wrapper
(All of the above standard features, plus:)
17" wide by 6" high end seal knife system
Up to 80 cycles per minute
Patented continuous motion, rotary hot knife system that seals most polyolefin films
Eight foot infeed conveyor
Crank adjustable inverting head
Crank adjustable side seal for quick product changeover
Scrap film take up wheel
Optional Features:
PVC seal system
Automatic product feed systems
Machine casters
Vacuum scrap removal system
Stainless construction
Tunnel Features:
12"x6"x20" tunnel chamber
Adjustable top/side air dampers
Heat to all sides
Thermostatic temp control
High velocity/volume blower
No maintenance silicone conveyor belt
Var.speed 0-30fpm conveyor
2000 watts of available heat
Single 110 VAC 20A power supply
One Year Warranty, including seal wire (Specs subject to change without notice.)
